Cladding Boards



Fiber Composite Board
Thickness: 10 mm – 20 mm
Max panel size (custom): up to 2.5 × 1.25m
density: ≈ 1,200 – 1,400 kg/m³

Key metric Value
Nominal Weight 10 mm → ~13 kg/m²
20 mm → ~26 kg/m²
Flexural strength 6–12 MPa
Water resistance Good (edge-seal recommended for prolonged wet exposure)
Fire resistance Non-combustible
Thermal conductivity 0.25–0.45 W/m·K
Typical tolerance ±0.5 mm(thin) → ±1.0 mm (thick)
Machinability Easy — standard carbide/diamond tooling

Textures

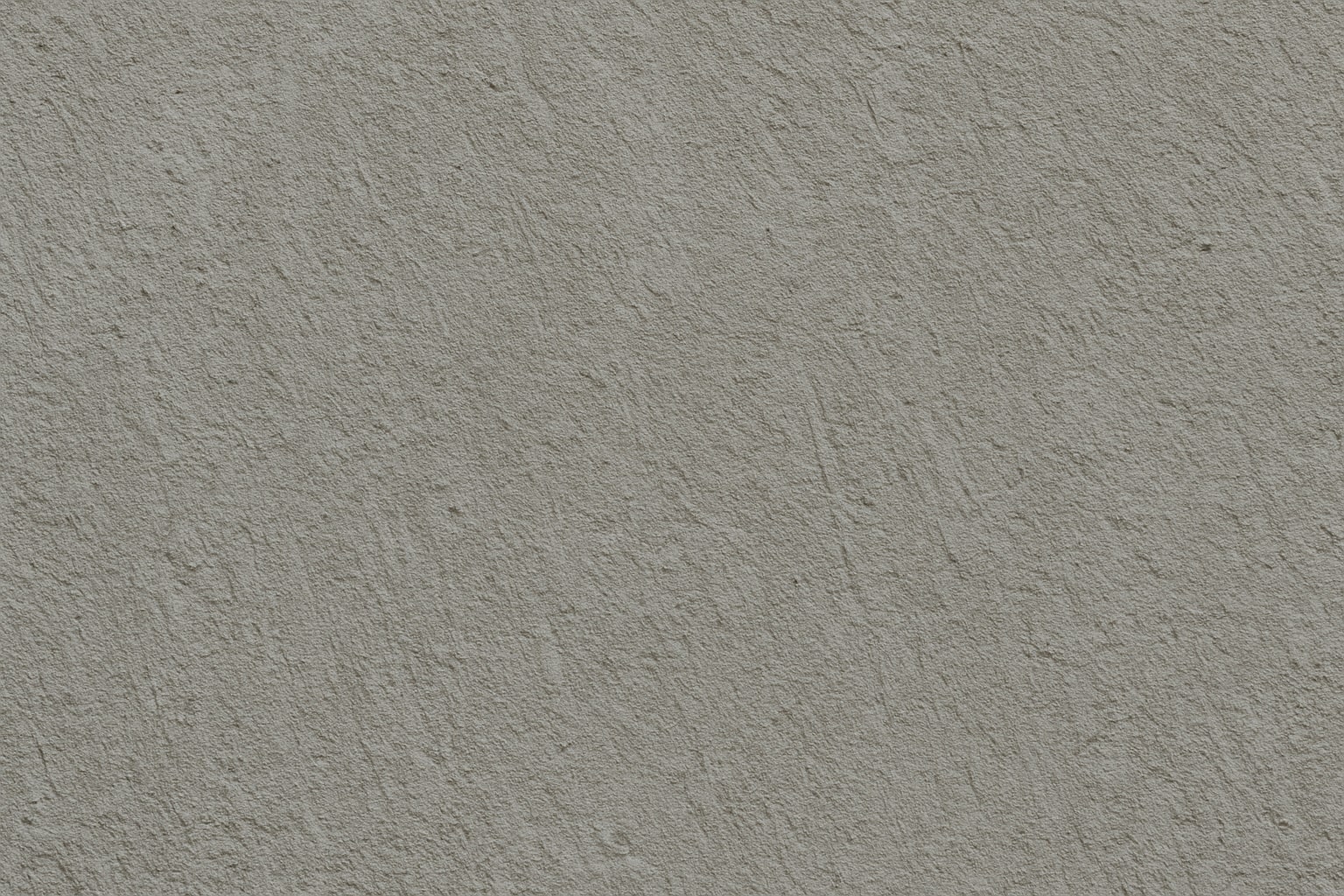

  • Smooth
  • Sanded
  • Wood
  • Stone
  • Brick
  • Custom

Practical uses

  • Exterior cladding walls and soffits
  • Interior partition walls & ceilings
  • Acoustic panels & perforated linings
  • Backing panels for veneers and laminates
  • Light-traffic interior flooring (thicker + sealed)
  • Built-in furniture panels

Mineral Composite Board
Thickness: 12 mm – 20 mm
Max panel size (custom): up to 2.5 × 1.25 m
Design density: ≈ 1,800 – 2,200 kg/m³

Key metric Value
Nominal weight 12 mm → ~24 kg/m²
20 mm → ~40 kg/m²
Flexural strength 8–18 MPa
Water resistance Very Good
Fire resistance Non-combustible
Thermal conductivity 0.7–1.6 W/m·K
Typical tolerance ±0.5–1.0 mm
Machinability Hard — diamond tooling

Textures

  • Smooth
  • Brushed
  • Sandblasted
  • Terrazzo

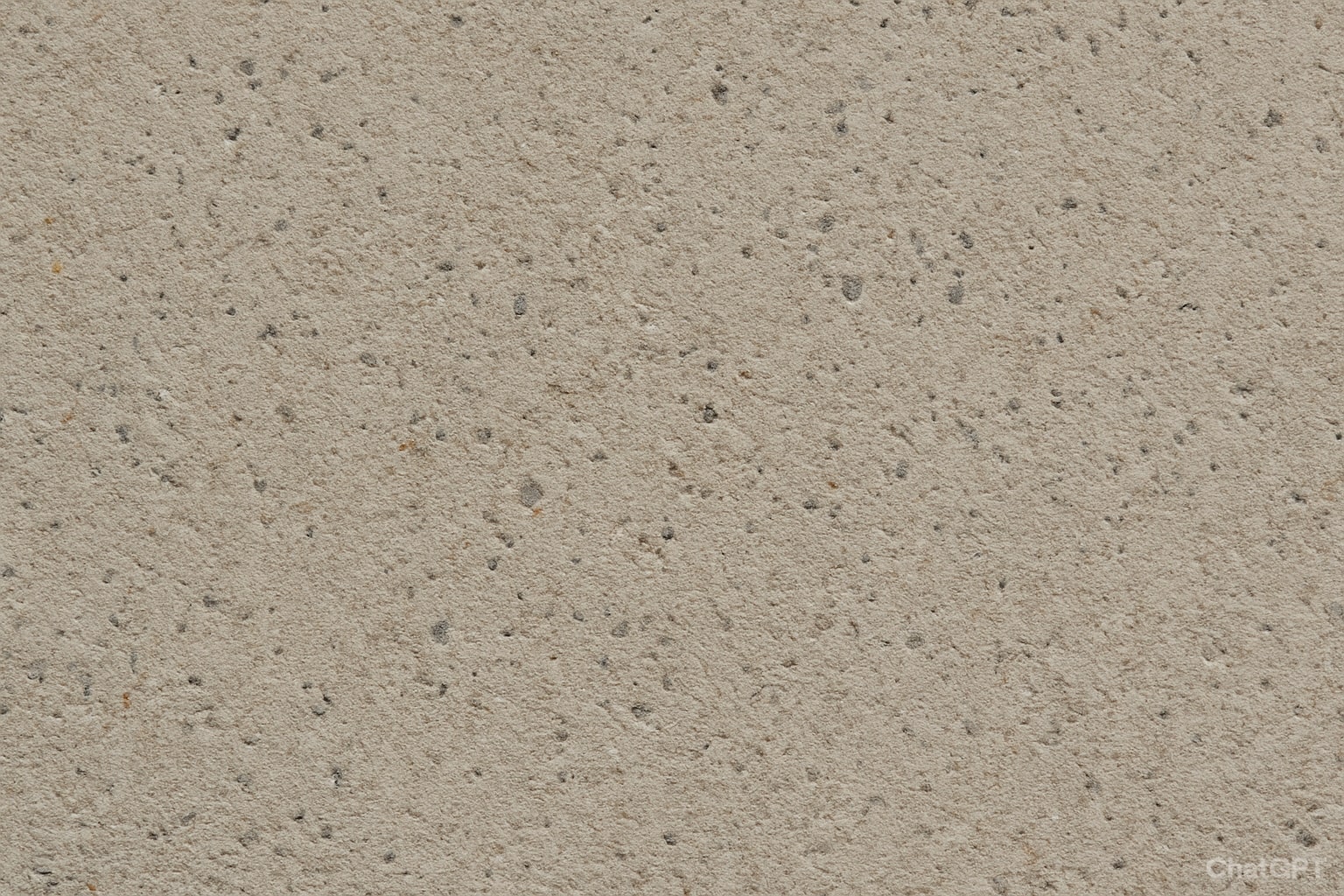

  • Aggregate
  • Custom

Practical uses

  • External cladding & rainscreen facades (when detailed)
  • Heavy-duty interior & exterior flooring (commercial & residential)
  • Stair treads, landings & thresholds
  • High-end countertops and work surfaces
  • Wet areas (pools, showers) with appropriate sealing
  • Sophisticated decorative panels and inlaid murals

Glassfibre Reinforced Concrete Board
Thickness: 10 mm – 30 mm
Max panel size (custom): up to 3.0 × 1.5 m
Design density: ≈ 1,600 kg/m³ – 1,800 kg/m³

Key metric Value
Nominal weight 10 mm → ~18 kg/m²
30 mm → ~54 kg/m²
Flexural strength 8–25 MPa
Water resistance Very Good
Fire resistance Non-combustible
Thermal conductivity 0.7–1.0 W/m·K
Typical tolerance ±0.5 mm(thin) → ±1.0 mm (thick)
Machinability Moderate — diamond tooling

Textures

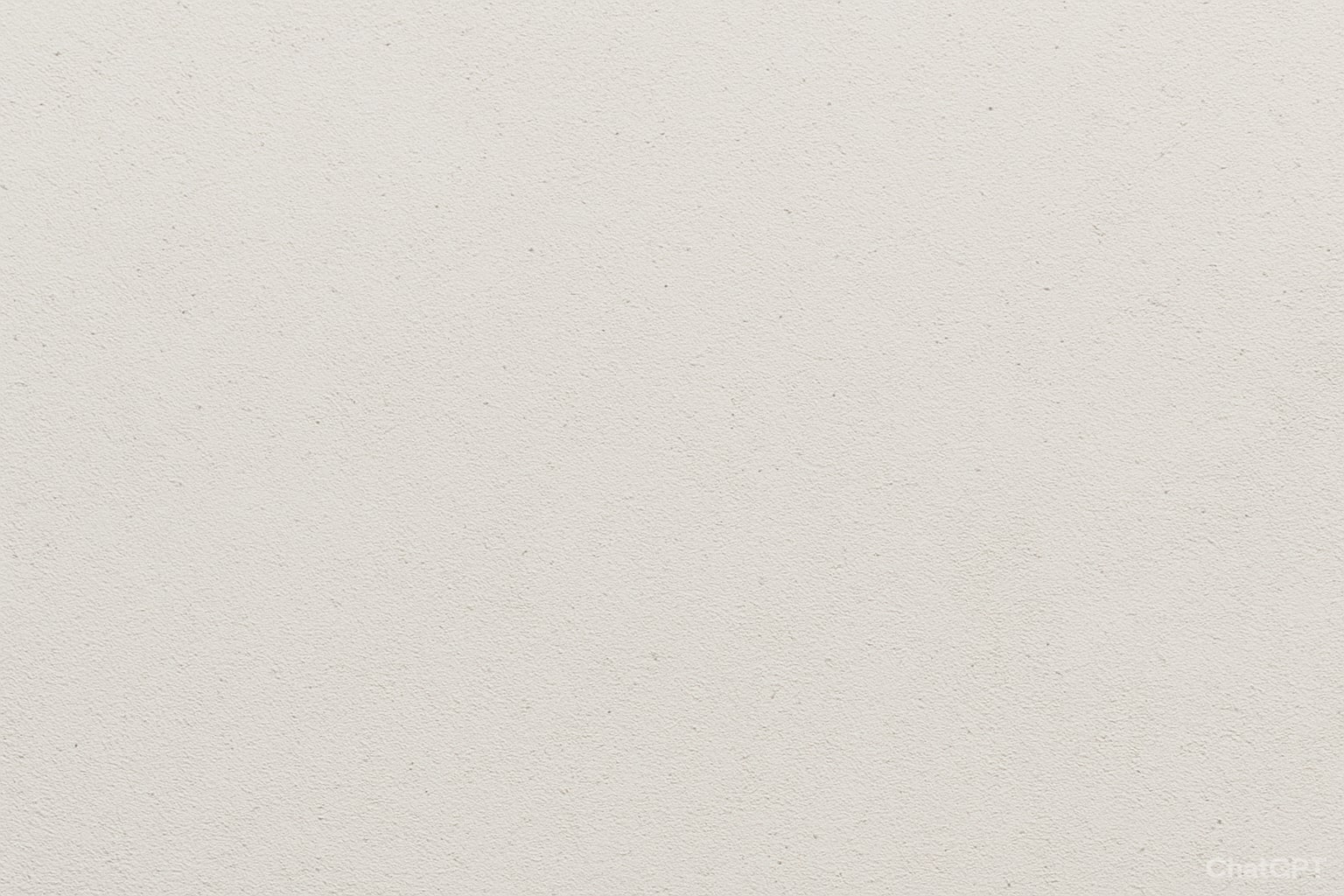

  • Plain
  • Colored
  • Custom

Practical uses

  • Architectural façade cladding & rainscreens
  • Curved panels, cornices, fins and decorative mouldings
  • Perforated sunscreens and acoustic screens
  • Balconies/terraces & lightweight structural panels
  • Bespoke architectural commissions
